1. Product Information

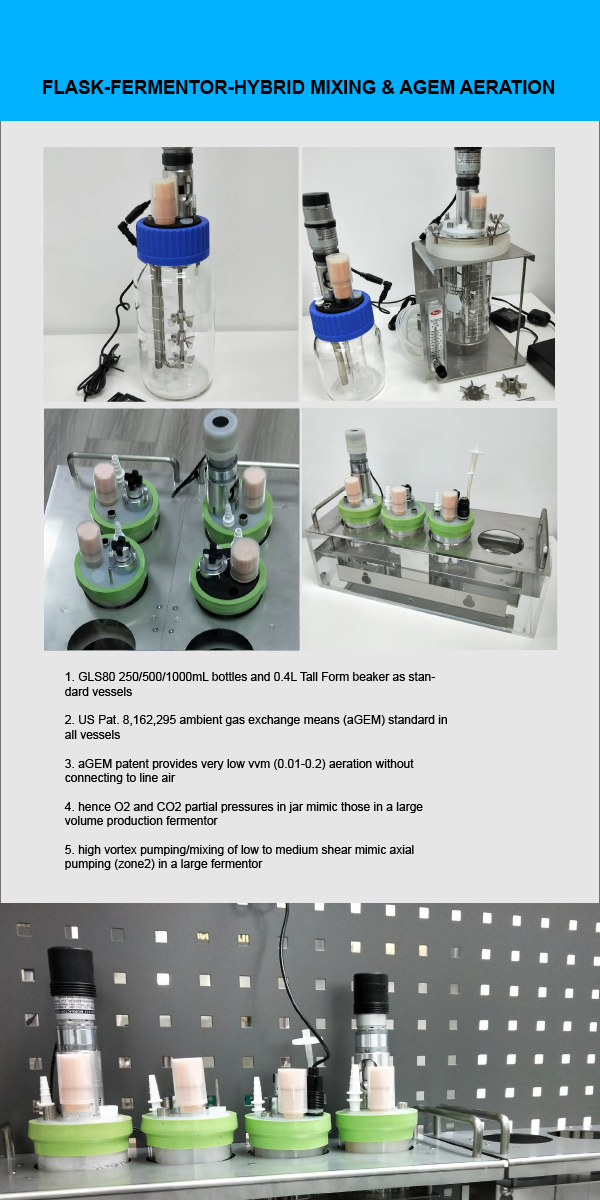

Item: Air-I-O Hi Flask 250/500/1000mL (GLS80 Schott)
Category:
All purpose table top stirred glass reactor & bioreactor system: affordable DIY modular design/monitoring, control & reactor array capability, regular industry, research, education as well as portable & field applications
2. Product Specification and Description
- Ambient gas exchange patent (US Pat 8,162,295): 100% working vol possible for microbial culture
- Convective air flow near 0.1vvm or higher w/o line air
- More basic design than mini jar, same spec except:
- STR applications w/ ambient gas exchange means for three GLS80 bottle sizes: 250/500/1000mL
- 4 ports: gas or air flow- 25&6mm; pH electrode or the likes- 12mm; thermowell- 10mm
- 25&22mm air vent respectively for flasks & jars.
- They provide easy sampling w/ Pasteur pipet
- 1X SS316 38mmD 6-blade paddle impeller for 250/500mL flasks, 3 more for 1000mL (31mmD for jars)
- Off-centered stirrer mount w/o baffle plates
- 6-speed 3-5-6-7.5-9-12VDC&1A output power adaptor
- Universal STR applications for GLS80 bottles ≥2000mL, special order, 1x SS304 50mmD 4-blade marine impeller
- For hi-thruput validation screen
